| 원래 장소 | 중국 |
| 브랜드 이름 | HORNQUIP |
| 인증 | CE |
| 모델 번호 | H360 |

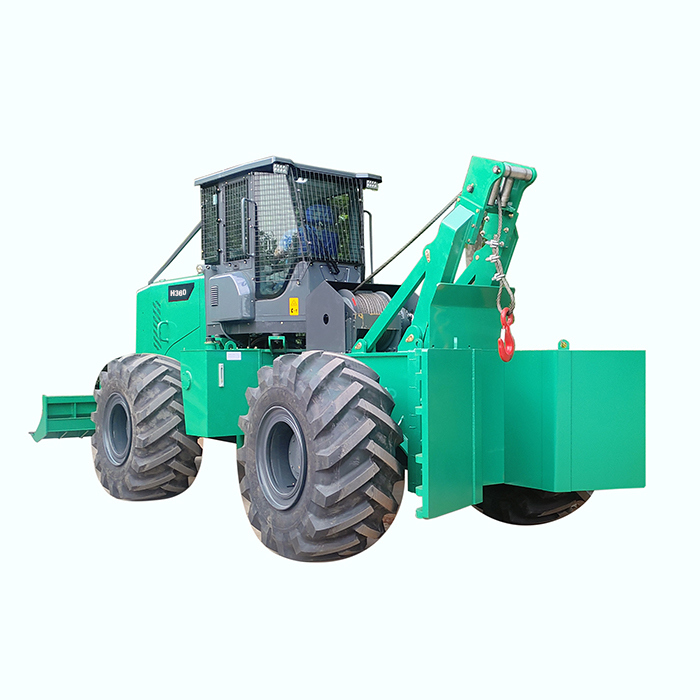

| SKIDDER MODEL | H360 | |
| Operation mass | 19700 Kg | |
| Engine Model | Wechai WD10G240E201 | |
| Rated power | 178KW/2200rpm | |
| Displacement | 10L | |
| Gear | 4 (F) 4 (R) | |
| Travel speed (Km/h) |
Gear I (F/R) | 6/6 |
| Gear II (F/R) | 11/11 | |
| Gear III (F/R) | 22/22 | |
| Gear IV (F/R) | 34/34 | |
| Articulated angle | 38° | |
| Tire | 23.5-25 | |
| Swing angle of front axle | ±12° | |
| Winch drive type | Hydraulic motor drive | |
| Maximum traction force of wire cable | 204KN | |
| Maximum speed of wire cable | 10m/min | |
| Drum capacity (diameter mm xlength m) | Φ22mmX33m | |
| Winch drum diameter (cable type) | 273mm | |
| The width of Winding drum | 230mm | |
| The height of lifting pushing plate | 1381mm | |
| The Depth of the cutting board | 456mm | |
| Turning radius (outside tire) | 6370mm | |
| Machine length | 7840mm | |
| Machine width (tire outside) | 3220mm | |
| Machine Height (cab) | 3550mm | |
| Tire radius | 760mm | |
| Height of the ground to the top of track guide | 2700mm | |
| Wheel base | 3680mm | |
| Wheel – tread | 2622mm | |
